To assemble all the equipment correctly follow the following instructions: The time along with the date will be displayed on the LCD at the same time. We would be setting the beeping time to be for 2 minutes in our code, but the variable values depend on the user, so you can set the same according to your wish. In order to work perfectly, when the current time would match with the alarm time (preset in the code), the buzzer will start to beep.To use the time data from the module and in order to make it work like an Alarm clock we will be using the library functions of Arduino IDE and then we will set the program to compare the time data with the alarm time that we have set in the program. As the DS3231 real-time clock module contains a built-in 3V battery, so the device keeps tracking the time even when not powered externally.

The working Principal of Arduino-based Alarm Clock

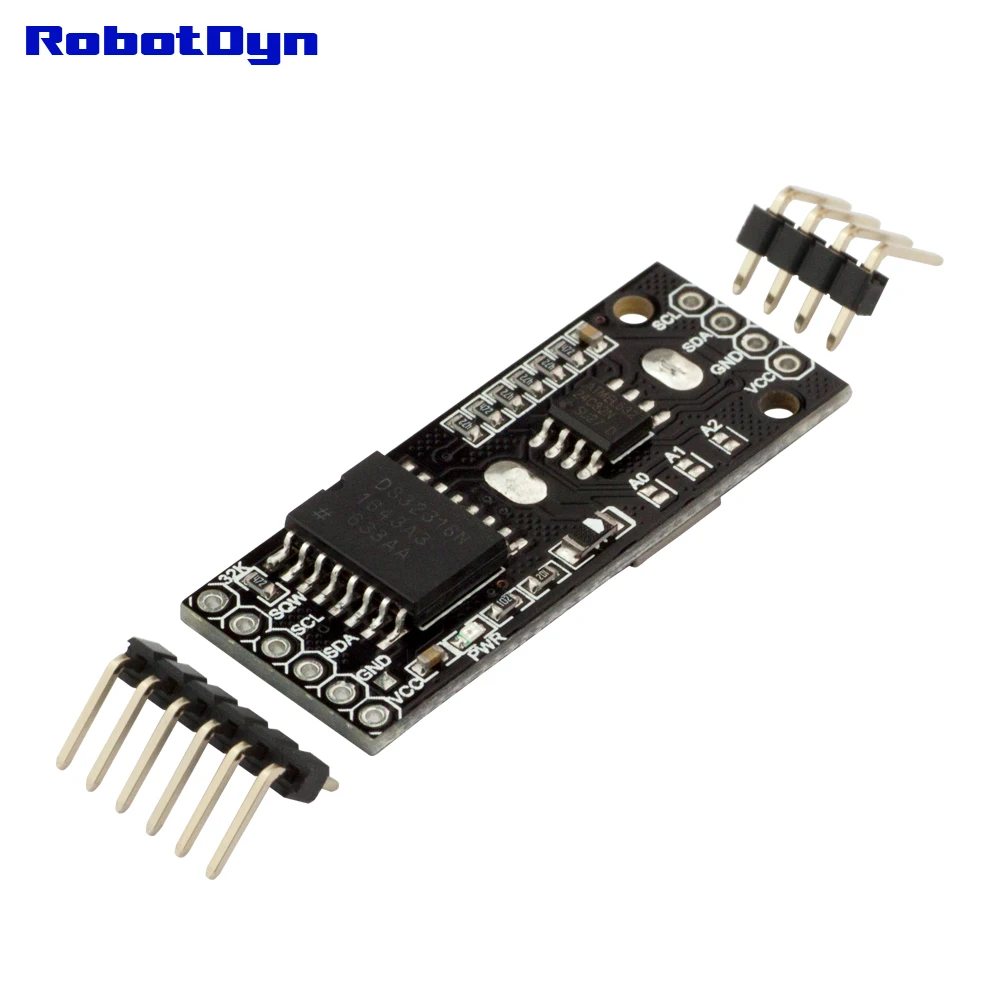

DS3231 RTC Module (also called Real-time Clock module).

One 16X2 LCD Module for displaying the time.

Connecting wires & jumpers are needed obviously.

Arduino UNO is recommended as the main component.

+2ppm to -2ppm for 0✬ to +40✬, +3.5ppm to -3.Code Explanation & Working Principal Hardware / Equipment Needed Module Specifications and FeaturesĬonfigurable I2C device Address for AT24C32 So, we can create 8 (23) different combinations(addresses).ĭS3231 RTC Module EEPROM I2C Address Set Jumpersīy default, all the 3 address inputs are pulled HIGH using onboard pullups, giving 24C32 a default I2C address of 1010111 Binary or 0x57 Hex. These 3 address inputs can take 2 states, either HIGH/LOW. Each one of these is used to hardcode in the address and we can set the address by shorting the jumper in the proper way.Īccording to the 24C32 EEPROM chip’s datasheet, these 3 bits are placed at the end of the 7-bit I2C address, just before the Read/Write bit. We can be changed easily the EEPROM I2C address using the three A0, A1, and A2 solder jumpers. It uses the I2C interface for communication and shares the same I2C bus as DS3231. It can be used to save settings or clock/calendar. RTC module also comes with a 32 bytes Atmel 24C32 EEPROM chip which having limited read-write cycles. That’s the reason Temperature Compensated Crystal Oscillator provides a stable and accurate reference clock and maintains the RTC to within ☒ minutes per year accuracy.

Which compensates the frequency changes by adding or removing clock ticks so that the timekeeping stays on track. Temperature Compensated Crystal Oscillator(TCXO) is packaged inside the RTC chip, making the whole package bulky.Īlso a temperature sensor inside the IC package. So the external temperature can not affect the oscillation frequency of this crystal. It’s highly immune to external temperature changes. The DS3231 is driven by a 32kHz temperature compensated crystal oscillator (TCXO). Temperature Compensated Crystal Oscillator(TCXO).The end of the month date is automatically adjusted the months which has less than 31 days. This IC clock operates in the format of either the 24-hour or 12-hour with AM/PM indicator. This Chip clock/calendar can provide seconds, minutes, hours, day, date, month, and year information.
